Technical Bulletin: Denso Hairpin Alternator — Field Serviceable vs. Non-Serviceable Components

The Denso Hairpin alternator (2012–2014 Cadillac CTS 3.6L LFX) is a high-output component essential to the vehicle's Regulated Voltage Control (RVC) system. For the lfxsvc.com archives, we categorize components based on their serviceability. To prevent "ghost" electrical issues and module damage, owners must distinguish between what is fixable and what renders the unit non-serviceable.

Field Serviceable Components

The following parts may be replaced by an experienced owner or technician to extend the life of the unit, provided the internal core remains intact:

• Overrunning Alternator Pulley (OAP): Replaced to eliminate belt-drive harmonics and "chirping."

• Voltage Regulator: The "brain" of the unit; can be swapped if RVC communication fails.

• Rectifier Bridge: Replaceable only if the technician can expertly manage the high-heat soldering required for the stator-lead welds.

• Brush Holder Assembly: While serviceable, it is important to note that Denso brushes are engineered for extreme longevity. Under normal operating conditions, these brushes are unlikely to fail within the standard service life of the alternator.

DIAGNOSTIC NOTE: If the brushes are found to be prematurely worn or "gummed up," it is almost always an indicator of an external oil leak (typically from the valve cover or power steering lines) contaminating the alternator. Oil acts as an abrasive when mixed with carbon dust, rapidly accelerating wear on the brushes and the slip ring.

Non-Serviceable Components (The "Replace Unit" Category)

If any of the following internal or structural issues are present, the alternator has reached the end of its technical life. These are not DIY repair items. If you find these faults, the unit is non-serviceable and must be replaced with a New Genuine OEM Denso unit.

1. The Slip Ring (Commutator)
The slip ring is the definitive "Do Not Touch" zone for DIY repairs.

• Why it is Non-Serviceable: A new slip ring cannot be simply pressed on and used. It requires a professional metal lathe to cut a perfectly concentric, true seat for the brushes.

• The Consequence: Without professional lathe-truing, the brushes will bounce at high RPM. This generates massive AC ripple (electrical noise) that can destroy the car’s BCM and ECM. If the slip ring is trenched or worn—often due to the aforementioned oil contamination—the unit is non-serviceable.

2. Internal Bearings
If the shaft exhibits grit, resistance, or lateral play (wobble), the bearings are spent. Replacing these requires high-precision presses and alignment tools. Improper installation leads to rotor-stator contact and immediate failure.

3. Stator Thermal Damage
If the copper windings show scorched insulation, melted resin, or bubbling, the stator has been compromised by heat. The Hairpin stator cannot be safely repaired or rewound by hand.

4. Cracked Housing
Hairline fractures in the aluminum casing, particularly near the mounting lugs, are structural failures. A cracked housing cannot be safely welded or repaired and will eventually fail under belt tension.

A Note for the Owner

It is tempting to try and save an original Denso unit when it starts acting up—these cars are becoming rarer, and we want to keep them on the road with the right parts. But there is a point where "fixing it" actually puts the rest of the car at risk.

In these units, the brushes are incredibly resilient. If you find yours are shot, don't just replace the brushes and call it a day. Look up. Worn brushes are a neon sign that oil has been getting inside that housing, and if it’s been there long enough to eat the brushes, it’s been there long enough to ruin the slip ring and the bearings too.

Don't risk frying a BCM that is getting harder to find just to save an alternator that's already been compromised by an oil leak. If the core is contaminated or worn, the best thing you can do for your Coupe is to let that unit go and pull the trigger on a new OEM assembly or Remanufacturing by a trusted professional. Your electronics—and your sanity—will thank you.

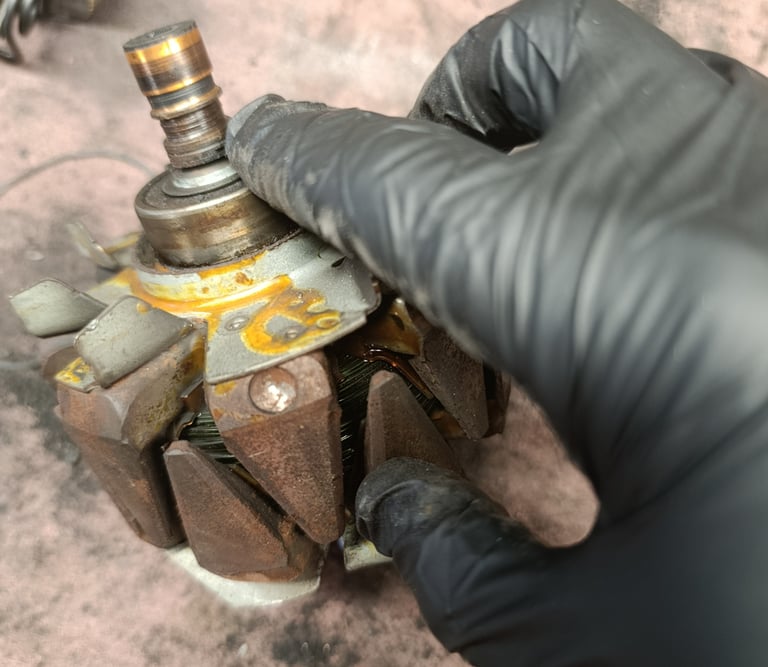

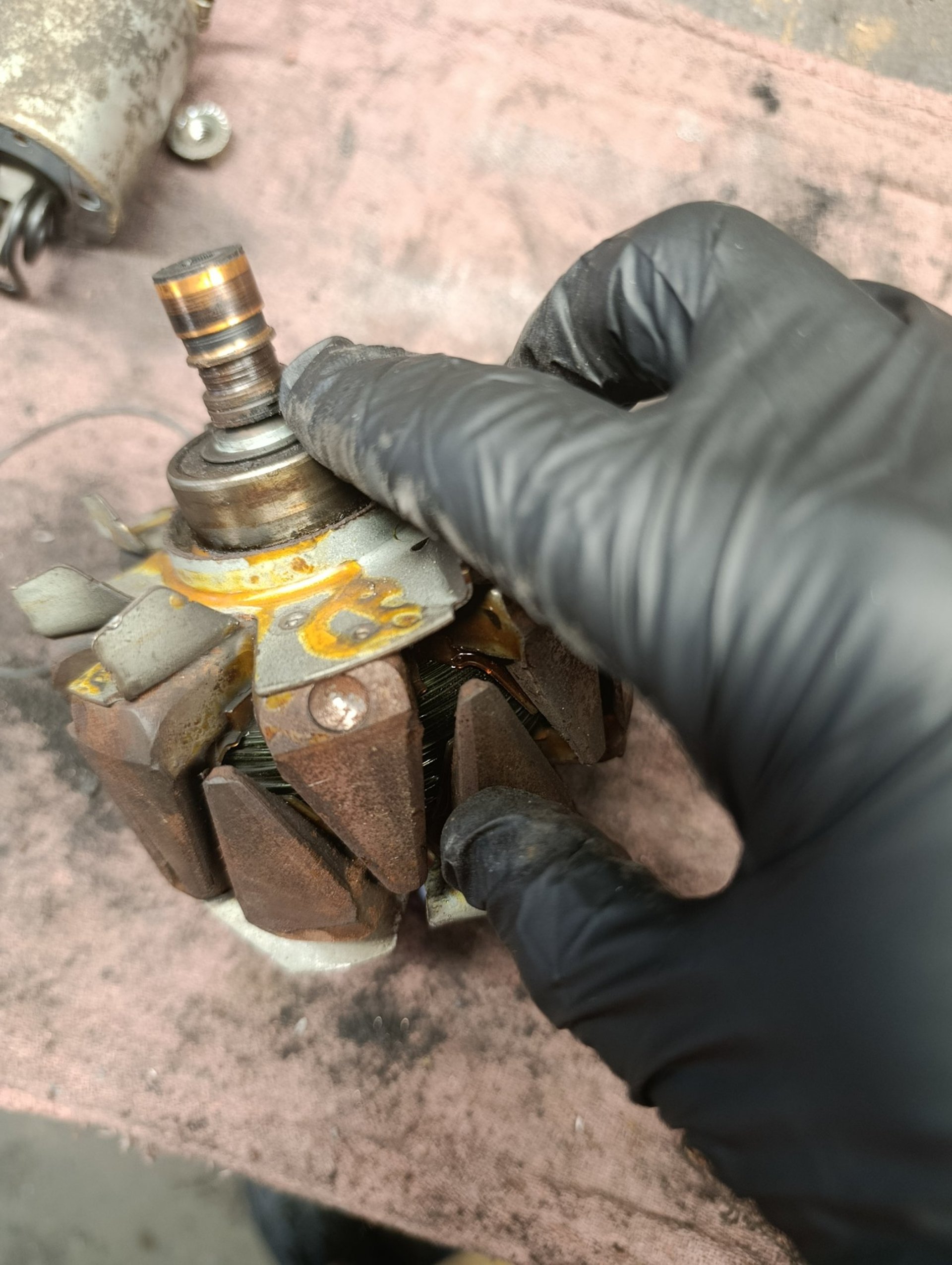

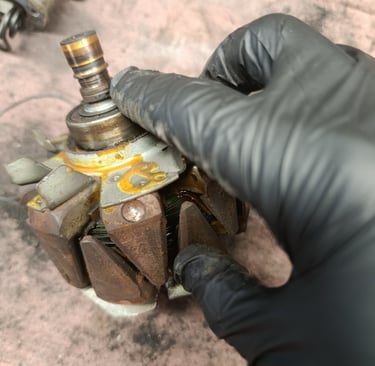

Mechanics gloves Pictured
